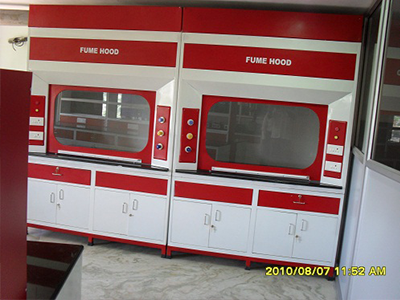

Fume Cupboard

Fume Cupboard

Material of Construction:
6mm thick asbestos lined FRP Bispheonl "A" fumerate resin rein forced with veneer ply sheet 12 mm thick. External laminated with melamine sheet.
Door:
Single, automatic, concealed type balanced with counter weights, sash weights, wire rope and others.
Motor: 1 H.P. 1440 RPM, three phase motor
Ducting:
200MM dia thick, rigid PVC pipe of height 8' will be provided with suitable rain hood.
Impeller: Dynamically balanced FRP impeller. Buffed by 3 mm thick FRP sheet.
Exhaust blower: Centrifugal dulvin type, in-built
Casting: 6 mm thick FRP Bisphenol "A" fumerate resin.
Temperature: Max 120'C pressure 2" swg
Suction: 1000/1200 cfm per minute.
Balancing: By suitable equipment upto 3000 RPM
Bottom Arrangement:
3' Height table made out of 19mm black board with sliding door, open door and one number horizontal partition internally coated with epoxy paint.
Flooring: Working surface shall be floored with spartek tiles with acid resistant cement joints.
Electrical Arrangement:
2 Nos of 3 pin 15/5 amp socket, with control switch and bush type starter will be provided.
Overall Dimension Approx.: 8 X 5 X 2.5 Feet
Power Supply: 230 Volts 50 Hz Ac Main 3 Wire System.
